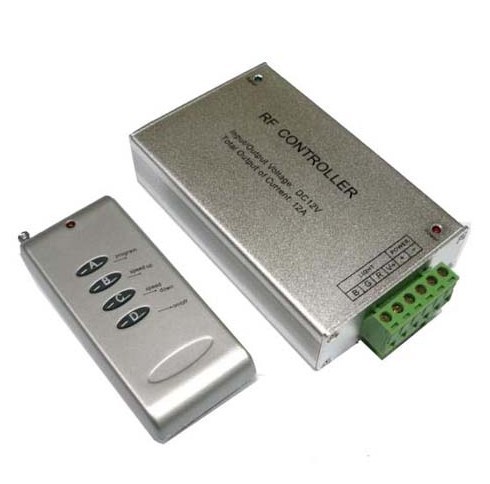

Remote Control Common anode 433 MHz LED lighting Strip Controller for 110V 220V with Aluminum shell

Technical Parameters

1. Working temperature: -20-60 °C
2. Power supply:AC110V-220V
3. Output:Three channels
4. Connecting mode: common anode
5. Transmission/Receiving frequency: 433 MHz
6. External dimension:L116*W53*H27 mm
7. Packing size: L30mm*W72mm* H43mm
8. Net weight:220g
9. Gross weight: 285g
10. Static power consumption: <1 W
11. Max output power:550W

Direction for Use

1. Connect the load wires at first, following by the power wires. Please ensure that short circuit can not occur between connecting wires before you turn on the power.
2. Adopt RF control method, function of each button as below:

   Button	Function
   A: program	press to change the mode.
   B: speed up	incress one level of speed.
   C: speed down	decress one level of speed.
   D: on/off	turn on/off the controller.

3. Mode:

   Item	Mode	Remark
   1	Red
   2	Green
   3	Yellow
   4	Blue
   5	Purple
   6	Cyan
   7	White
   8	Three-color jumpy change	Speed adjustable (B, C button available)
   9	Seven-color jumpy change	Speed adjustable (B, C button available)
   10	Three-color gradual change	Speed adjustable (B, C button available)
   11	Seven-color gradual change	Speed adjustable (B, C button available)

Wiring Diagram

Attentions

1. Supply voltage of this product is AC110V-220V;
2. Never connect two wires directly in case of short circuit;
3. Load wires should be connected correctly according to the connecting diagram offers;
4. Don't peel off the label on the controller in case any indication of information will be missed;
5. Warranty of this product is one year.In this period,we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged or overload working.
6. Don't touch the shell when it work for high temperature.
